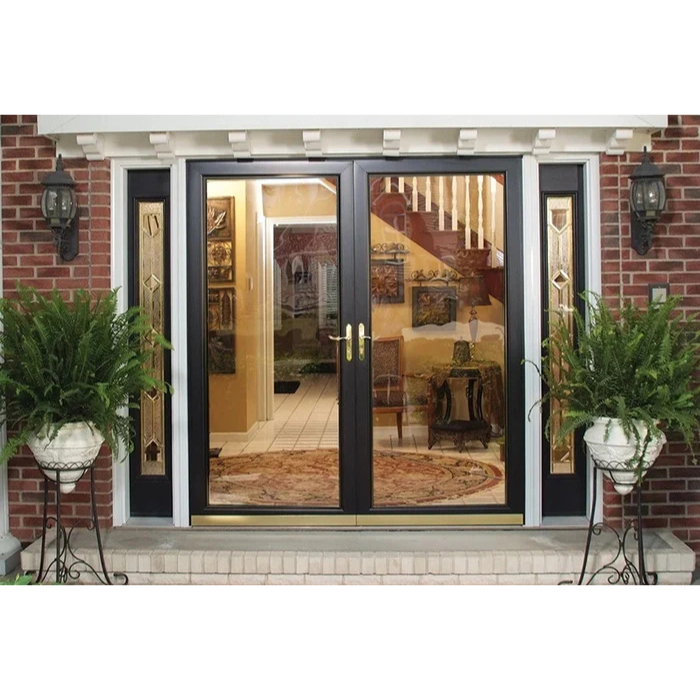

Larson French Door Conversion Kit

• Includes all parts necessary for french door installation excluding two doors
• Add this kit to your cart if you have french(double doors).
• With a French Door Installation, you will have one Left Hinge door and one Right Hinge door.
• The astragal included in your French Door Kit replaces the latch side mounting rail included with each door.
• The full width top mounting rail included in the French Door Kit replaces the top mounting rails included with the doors.
• Your French door kit will also include slide bolts to install onto the astragal so you can lock your inactive door.

Measuring

1. Measure full width of opening from jamb exterior trim where storm doors will attach to the trim.
2. Measure full height of opening from head exterior trim to threshold where storm doors will attach. 1-in. wide x 1-in. deep mounting surface is required.

Note: Continuous wood shims up to 1/4" thick can be installed behind both hinge mounting rails allowing a given width of standard doors to fit an opening up to 1/2" wider. Extra long screws will be needed to secure.

Compatible with the Following Models

146, 370-81, 830/691, 156FV, 360-NV, 274-FL, 350-04, 360-48, 149FV, 159FV, 288-SS, 286-SX, 283-ST, 360-18, 360-16, 370-78/79
